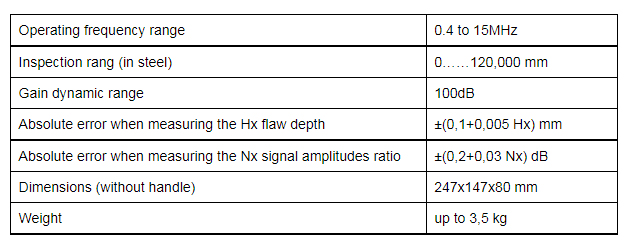

BASIC TECHNICAL SPECIFICATIONS

GENERAL FEATURES

·Defect equivalent and conditional sizes measurement;

·Thickness measurement;

·A – scan and B – scan;

·Synchronization: internal, external, from coder;

·Scanning speed control;

·Rectifier: RF/full wave/+ half wave/- half wave;

·Gain control function set, including AGC, TCG;

·Automatic probe and test piece parameters calibration interface

·Several DGS diagrams operating modes;

·Two independent tree-level measuring gates;

·Two more special gates;

·Coupling control system;

·Flaw detection alarm system on all gate’s levels;

·Bright three-color alarm LEDs;

·Advanced peak curve mode;

·Mode of current signal overlaying an earlier frozen one (“freeze and live” mode);

·Signals spectrum display;

·Dynamic control of the pulser parameters depending on the probe frequency;

·Reflections highlight mode;

·“User”, “Expert” menu modes;

·Voice comments recording referred to all data types;

·Large, high contrast TFT display;

·Results and settings storage;

·Communication with PC via USB port.
